Designed to bring the same ease of use to flowsheet drawing and solution that word processors bring to the preparation of text based documents.

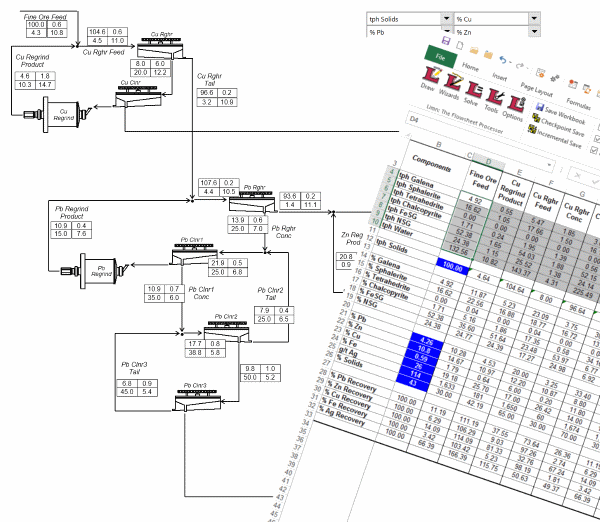

PROCESS FLOWSHEETS BUILT INTO A SPREADSHEET:

• Rapid sketching of report quality flowsheets using a ‘flowsheet aware’ drawing package
• Extensive process unit icon library
• Block diagram option
• Easy addition of user drawn custom icons
• Data are stored totally within the spreadsheet - no additional files
• All data are accessible to the user - no internal data formats
• WYSIWIG presentation - may be used in conjunction with other tools for the Microsoft® WindowsTM operating system.

THE FLOWSHEET MAKES AN IDEAL VEHICLE FOR:

• Presentation of survey results
• Communication of design data
• Preparation of design data
• Display of process balance data

THE LIMN:SOLVE ‘SIMULATION ENGINE’ PROVIDES:

• Balanced flowsheet solutions using your spreadsheet models, the Limn model pack, or model packs from external sources.
• Spreadsheet based simulation (without circular references!).
• Results of simulations saved within the spreadsheet and presented in data blocks on the flowsheet.

ADD-INS:

Limn may be further enhanced by the addition of domain specific Add-Ins:

WizardPack Add-On for Limn – Provides data structures and models for simulation and analysis of mineral, coal and other processing operations

THERMO Add-In for Limn and Excel – Provides simple spreadsheet access to a chemical thermodynamics database and calculations
